INFRATEST Software

Precision and Versatility for EO Device Testing

INFRATEST Software offers exceptional precision and versatility for the testing and qualification of electro-optical devices. It is particularly efficient for cameras, thermal imagers, Night Vision Devices and binoculars, goggles, and other sensors, ensuring optimal performance and accuracy.

DOWNLOADContact us

INFRATEST

SUPPORTED DEVICES

INFRATEST Software supports a wide range of devices and electro-optical systems:

THERMAL CAMERAS (COOLED OR UNCOOLED)

NETD, spatial resolution (LSF/MTF), MRTD and DRI ranges, alignment of OPTICAL AXIS VS MECHANICAL AXIS

VISIBLE TO SWIR CAMERAS

Noise equivalent Irradiance, effective focal length, resolution (MRC), distortion, field of view, latency

NIGHT VISION GUN SIGHTS & GOGGLES

Gain, resolution, infinity focus, zero and range of eyepiece, parallelism of goggles axes, figure of merit, spot defect

LASER RANGEFINDERS AND DESIGNATORS

Alignment, beam profiling, divergence, accuracy of distance measurement, laser pulse energy and power

MULTIPLE AXES OPTRONIC SYSTEMS

Camera axis alignment, boresighting between cameras (any type) and mechanical axis

MULTI-FUNCTIONAL BINOCULAR SYSTEMS

Alignment of axes, large apertures compatible

FOCAL PLANE ARRAYS AND CAMERAS

Bad pixel location, non-uniformity correction, temporal noise and fixed pattern noise measurement, detectivity, responsivity

Civil & Military Applications

INFRATEST Software is particularly appreciated for the following applications:

R&D: Product development, optimization and qualification
Production line: Quality control
Maintenance: Proper operation check, operational condition maintenance

DOWNLOADContact us

INFRATEST

MAIN ADVANTAGES

HIGH ACCURACY

MODULAR

VERSATILE

DCN1000V

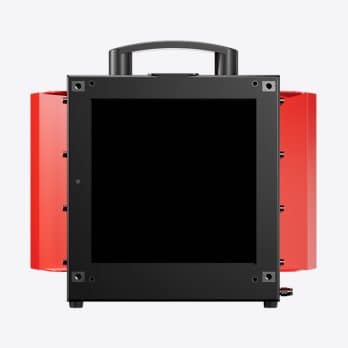

Vacuum-compatible blackbody sources for space and Earth radiations simulations

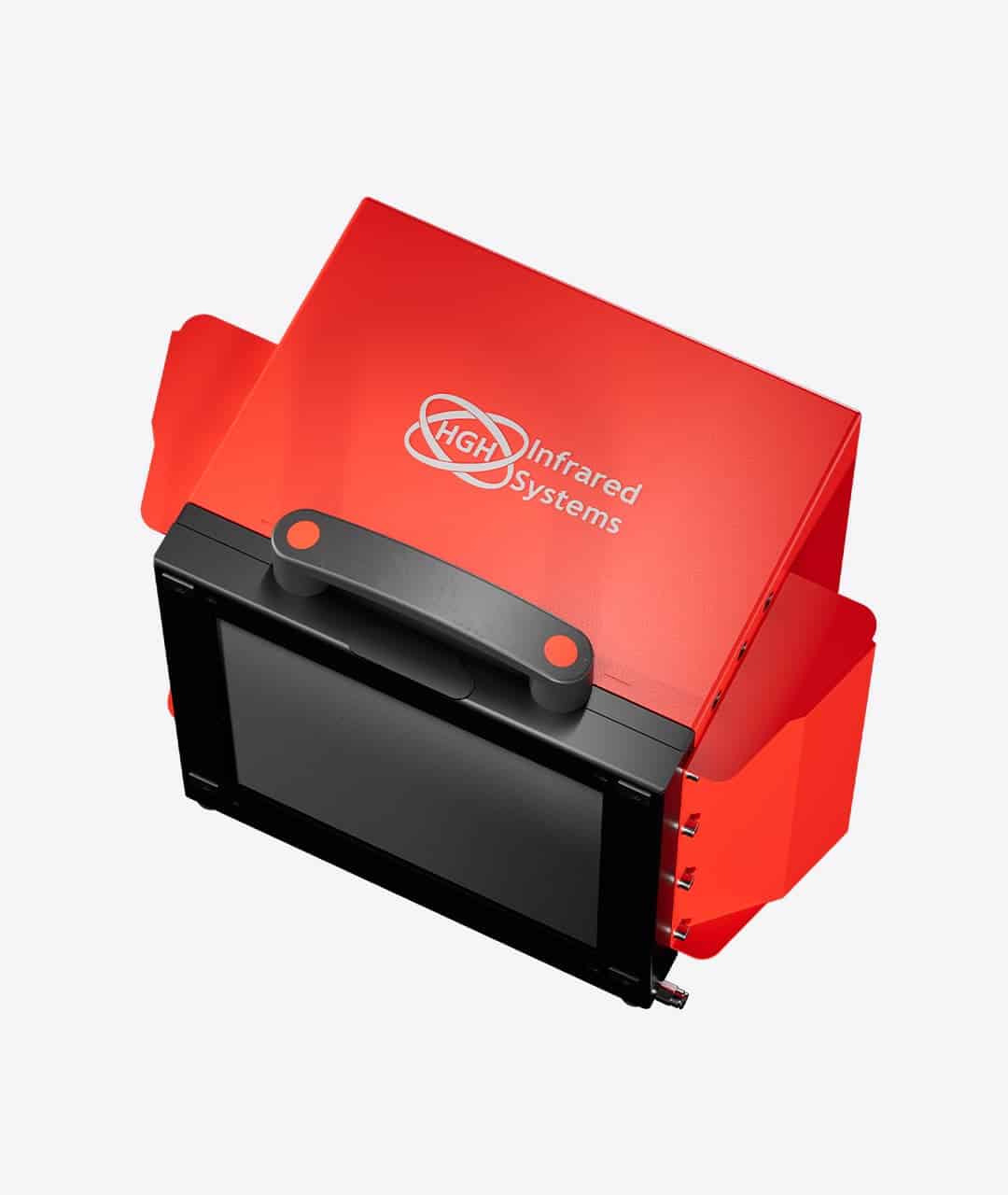

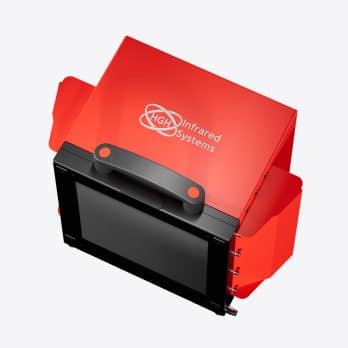

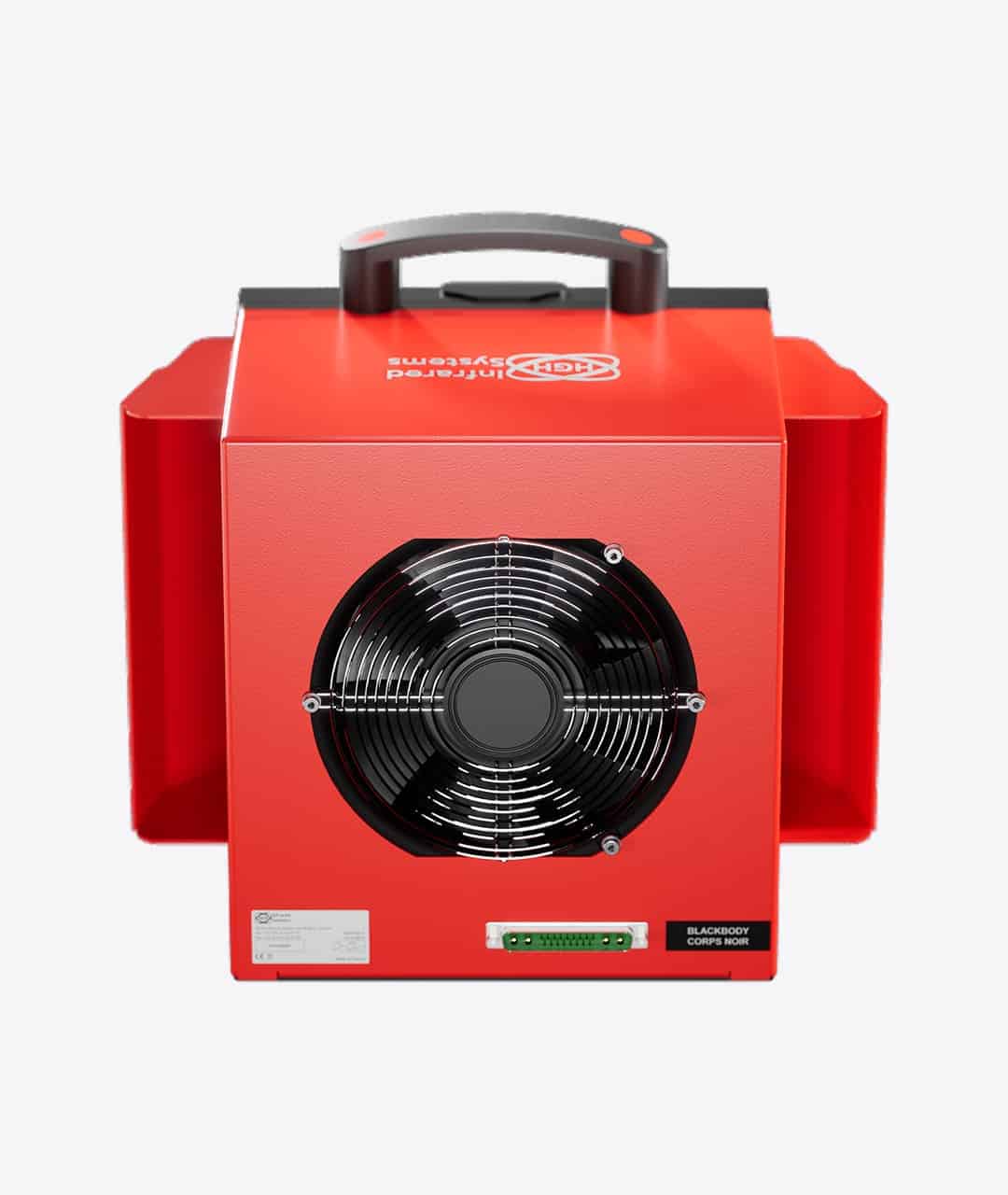

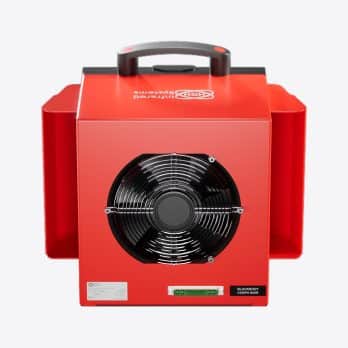

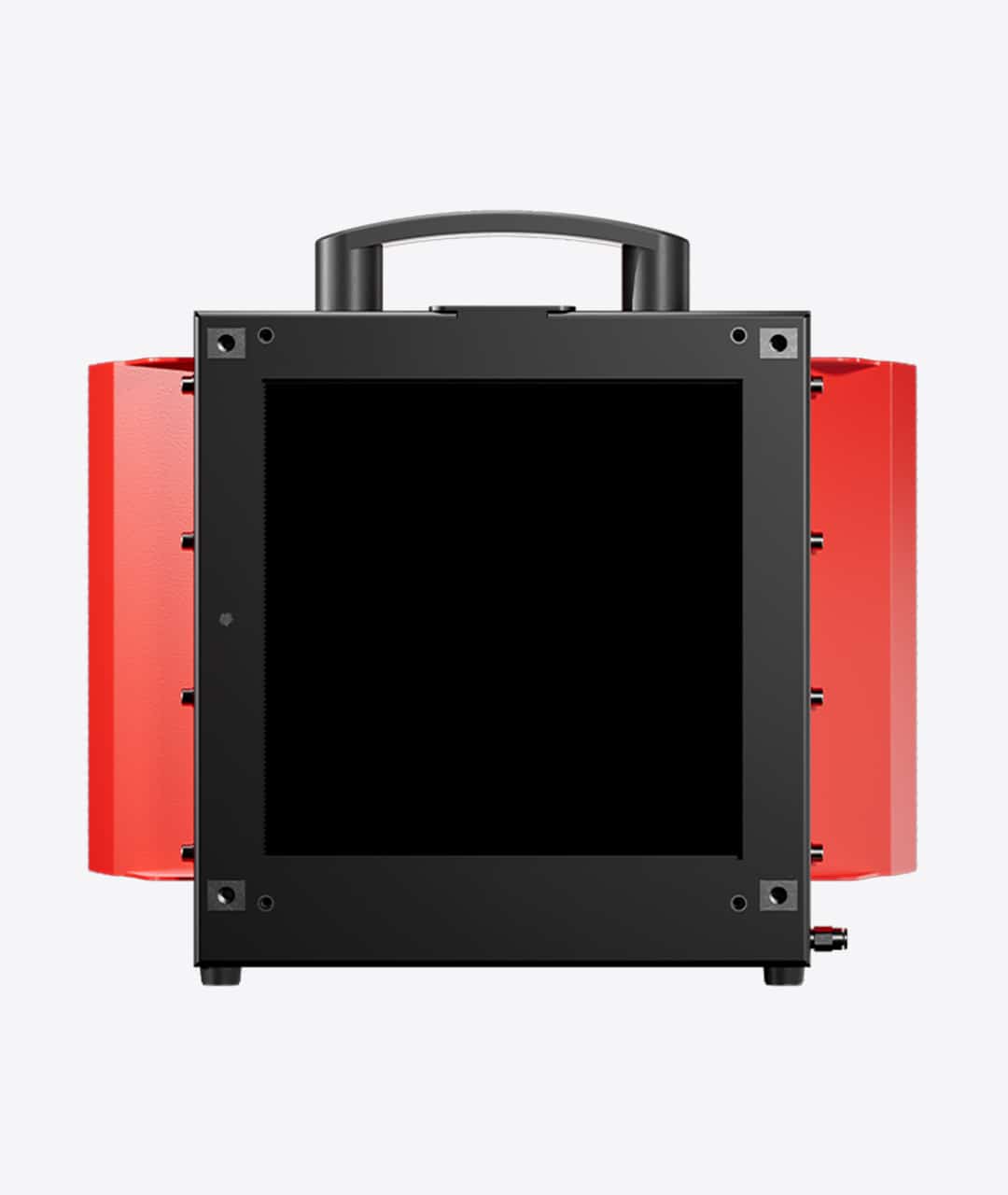

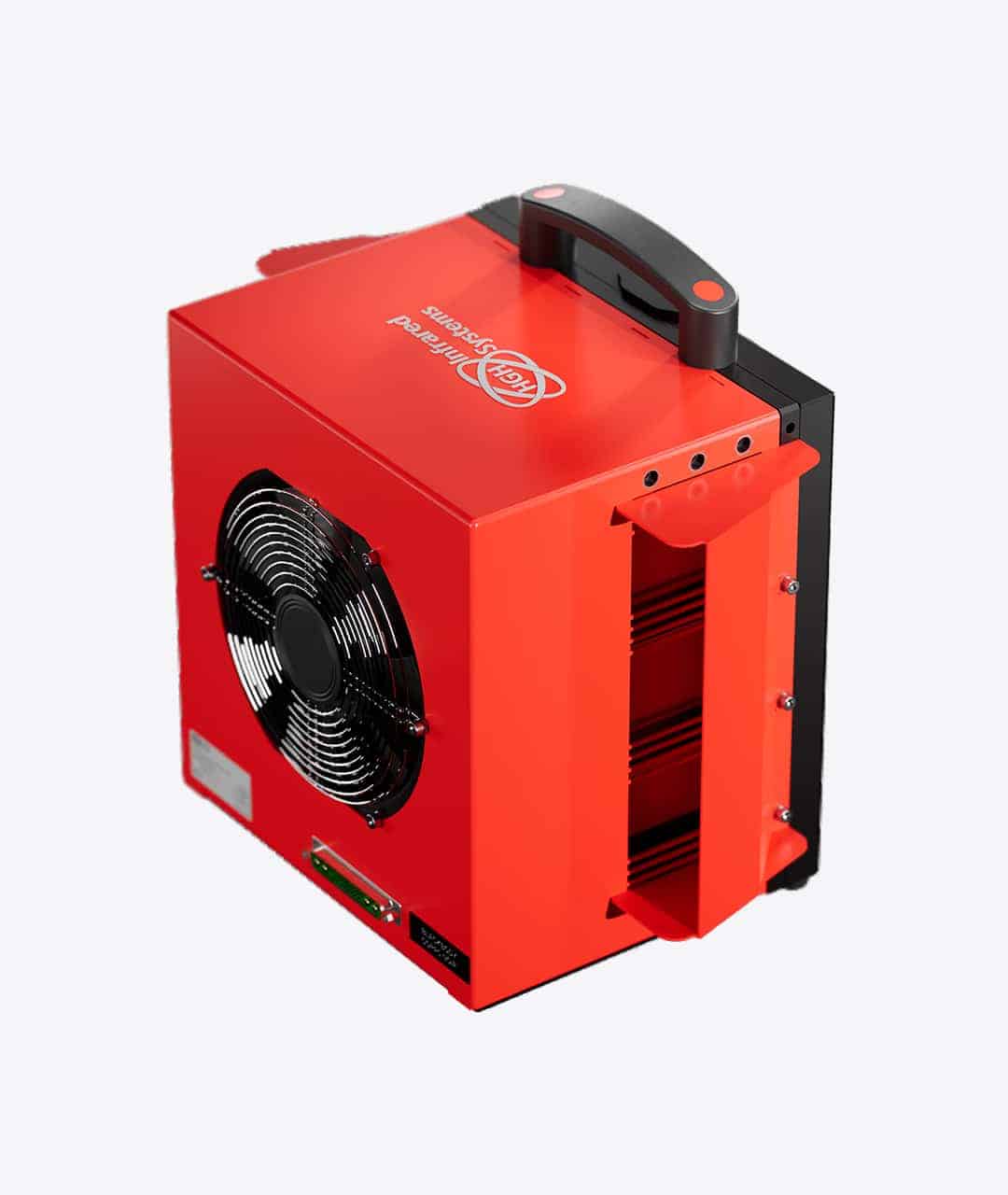

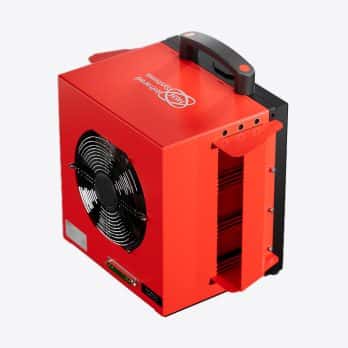

The DCN1000V series are vacuum-compatible blackbody infrared reference sources, specially designed for Optical Ground Support Equipment (OGSE), used for space and Earth radiation simulations. With superior emissivity, exceptional temperature control, and high thermal uniformity, the DCN1000V ensures reliable and precise calibration for infrared sensors in vacuum environments.

DOWNLOADContact us

DCN1000V Blackbody : Complete your OGSE for IR payload calibration & testing

The DCN1000V Blackbody is engineered to be used in vacuum environments. It meets the stringent requirements of Optical Ground Support Equipment (OGSE) for space applications, where precise temperature control is critical. Equipped with a vacuum-compatible emissive coating and designed for integration in vacuum chambers, these blackbodies offer optimal performance in the most challenging conditions.

> Technical Data

Main applications of DCN1000V Blackbody:

✔ Calibration of infrared sensors in vacuum environments
✔ Space industry applications, including satellite testing
✔ Earth radiation simulation for ground testing of space systems
✔ Infrared thermography in cleanroom conditions

Test Bench & Related Tools for Automatic Control

Blackbody Temperature

Visible Source Luminance

SWIR Source Radiance

Target Pattern

Azimuth, Elevation Adjustment

Motorized Stages Position

Video Signal Management

Real-time Acquisition
Live Display
Image Acquisition
Accurate Measurement Analysis
Full Performances Calculation
Auto-saved Data
Multi-format Data Export (.csv, .xml, .png, .html)

Video Protocols

INFRATEST Software is compatible with a wide range of video protocols, including:

Analog (CCIR, RS170, PAL, NTSC)
Camera Link
USB3 Vision
3G SDI, HD SDI, SD SDI
GigE Vision
DVI, HDMI

Custom Scenario for testing electro-optical systems

The flexible structure of INFRATEST software allows the operator to build customized test scenarios for any electro-optical system. The operator can pick from an exhaustive list of hardware control functions and accurate tests, then create sequences with the “drag & drop” function. This user-friendly interface enables the creation of fully automated test benches based on HGH products, saving time and offering unlimited testing capabilities.

Contact usDOWNLOAD

Contact us to learn more about our INFRATEST Packs:

INFRATEST Camera Pack

Includes the essential functions to test any kind of cameras from visible to Infrared.

INFRATEST Camera Expert Pack

Includes advanced test functions, such as accurate measurement of the Distorsion or range calculation based on TOD method, in addition to the Camera Pack functions.
