Frequently Asked Questions
Answers to your questions about Electro optical test solutions
A blackbody is an object which absorbs all incident radiations it receives whatever the wavelength or direction and re-emits all these absorbed radiations. An important property of blackbodies is that the re-emitted energy level only depends on the temperature of the blackbody.
For a prescribed temperature and wavelength, the quantity of radiated energy, named radiance, is well known from the Planck’s law.
A blackbody is then an optical reference source, though a theoretical device.

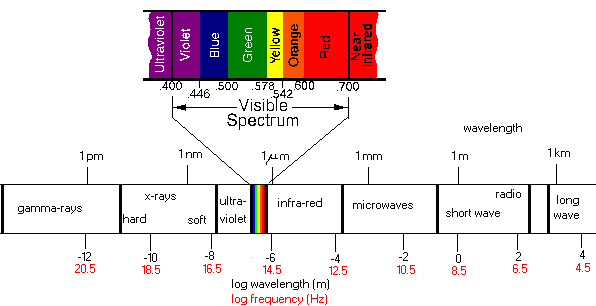

The infrared radiation is the electromagnetic radiation where wavelengths are between 700 nanometres and 1 millimetre. Thus, it is located between the red limit of visible spectrum and the shortest microwaves.
However, taking into account the major applications of thermal sensors, the main considered spectral range is between 1 µm and 50 µm including 3 major sub spectral ranges corresponding to the atmosphere transmission windows:
- 1 µm to 3 µm or Short Wave Infrared (SWIR) or band I
- 3 µm to 5 µm or Middle Wave Infrared (MWIR) or band II
- 8 µm to 14 µm or Long Wave Infrared (LWIR) or band III.
Usual objects are not blackbodies. They do not absorb 100% of the incident energy and usually select the absorbed wavelengths.
Consequently, they cannot re-emit all the incident energy. The ratio between the re-emitted energy of a usual object and the re-emitted energy of a blackbody at the same temperature of the object is called emissivity and noted ε. This ratio depends on wavelength and is comprised between 0 and 1. Of course, the emissivity of a true blackbody equals 1.
However, such bodies do not exist and manufacturing “blackbodies” consists in creating optical sources with emissivity value as high and as constant as possible over the widest spectral range. These sources are called grey bodies but practically sources with emissivity higher than 0.9 are also called blackbodies.
As mentioned in FAQ section, the quantity of energy emitted by a true blackbody only depends on its temperature. This radiation level, named Radiant Emittance R or Radiance, is defined by the following distribution discovered in 1900 by the German scientist, Max Planck:
Where:
- h is the Planck’s constant, h=6.626 x 1034 Js
- K is the Boltzmann’s constant, K=1.381 x 10-23 J/K
- c is the speed of light, c=2.998 x 108 m/s
- λ is the wavelength (in meters)
- T is the temperature of the blackbody in Kelvin: T (Kelvin) = 273,15 + t (Celsius degree).
No need for you to learn the Planck’s law by heart!

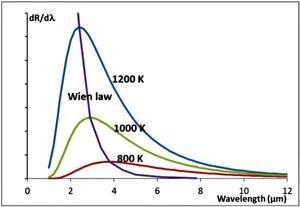

However it is good to know some important properties of blackbodies as consequences of the Planck’s law:
- For any given wavelength, the Radiance level is an increasing function of the temperature,
- For any given temperature, the Spectral Radiance curve reaches a maximum which wavelength can be easily calculated from the easy-to-remember Wien’s law
Example: a blackbody at 800K (i.e. 527°C approx.) emits its maximum radiation at about 3.6 µm, i.e. in the MWIR spectral range.
As the radiation level of a blackbody only depends on its temperature and is well-known through the Planck’s law, blackbodies are used as optical reference sources for optical sensors. Practically, as the temperatures values for blackbodies emitting over the visible range are very high and as, consequently, this leads to very expensive sources compared to classical lamps, the blackbodies are mainly used over the infrared spectral range starting from 1 µm. That’s why blackbodies are also known as Infrared Reference Sources.
The main applications are IR sensors calibration and their specifications measurement.
Depending on the applications and on the IR sensor range of sensitivity, the manufactured blackbodies are divided into 3 families usually defined by their temperature range:
- Low temperature extended area blackbodies, which temperature is set from approximately -40°C to more than 150°C
- High temperature extended area blackbodies, which temperature is set from above ambient temperature up to 600°C
- High temperature cavity blackbodies, which temperature is set from above ambient temperature up to 1350°C
A blackbody is usually made of two parts linked through a cable:
- emissive head: including an emissive surface coated with highly emissive coating or a cavity. An accurate temperature sensor is inserted into the emissive surface or cavity measuring the temperature of the source in real time. Depending on the temperature range the emissive head is also equipped with heating and/or cooling means.
- electronic controller: which brings power to the heating/cooling mean while acquiring and displaying the temperature of the emissive surface in real time. The electronic controller is equipped with accurate servo control loop for high-stability temperature regulation.
2 main criteria are to be considered when selecting a blackbody: temperature range and emissive surface size. Both depend on your application.
The temperature range must include the temperatures of the objects your camera is supposed to look at. Example: if the camera application is passive surveillance of the landscape, the temperature range of the blackbody used to test this camera must include temperatures around ambient temperature, below and above. If the camera application is temperature measurement, i. e. Thermography, of objects up to 500°C, the selected blackbody for calibrating such a camera must range from ambient to 500°C at least.
The aperture of the blackbody depends on the tests you want to do on the camera: NETD, non-uniformity correction, bad pixel location requires the blackbody surface to entirely cover the optical aperture of the camera. Resolution tests (MTF, MRTD, TOD) are made on a portion of the field of view and a smaller blackbody, at least covering the surface of the target, would be suitable.
Other parameters might be considered, such as the uniformity, the stability and the operating environment.
An IR camera is sometimes sensitive to the temperature difference or thermal contrast between an object and its background. Consequently, some tests require to simulate an object and its background and to have a simultaneous and accurate measurement of both and accurate measurement of the temperature difference.
The simulation of an object and its background is made by placing a target in front of the emissive surface of a blackbody.
A blackbody able to control the temperature difference is said to operate in differential mode.
An infrared target is a thin sheet coated with high emissivity coating with stuck patterns. The object is made by the blackbody seen through the holes and the background is the solid part of the sheet.
Consequently the temperature of the object is the temperature of the blackbody while the temperature of the background is measured by inserting a temperature sensor into the mount of the target.
As some IR cameras specifications depends on the temperature difference or thermal contrast between an object and its background, it is necessary to have the object temperature adjusted with respect to the background temperature. A differential blackbody allows this function by adjusting the temperature of the object in real time to a fixed temperature difference (positive or negative) with respect to the floating temperature of the background.
The tests which can be performed on an IR camera using a blackbody can be divided into 4 categories:
- Correction and calibration tests: thermal calibration of the signal, non-uniformity correction, dynamic range, linearity measurement, etc.
- Noise measurement: thermal resolution, temporal noise, NETD, fixed pattern noise, spatial noise, NEI, etc.
- Spatial resolution and geometrical specifications: LSF, MTF, Field of View, IFOV, alignment, magnification, etc.
- Range evaluation: MRTD, MDTD, TOD, Detection, Recognition, Identification ranges, etc.
HGH offers an efficient solution to the test of IR Cameras through the INFRATEST software

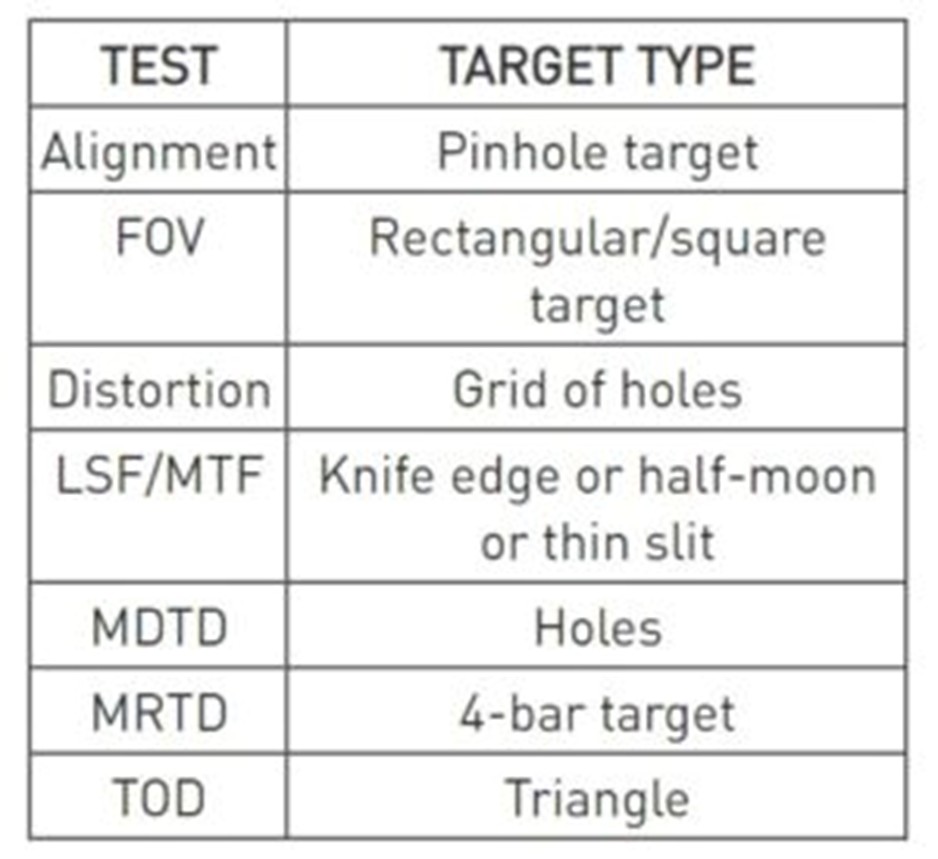

The following table is a suggestion of the recommended targets for the usual tests:
Noise tests usually do not require any target.
The NETD (Noise Equivalent Temperature Difference) is the temperature difference between an object and its environment required to generate a variation of the IR camera signal equal to its temporal noise, i.e. its 1-sigma temporal instability. It can be considered as the thermal resolution of an IR camera.
The MTF (Modulation Transfer Function) curve shows the contrast value (between 0 and 1) of a sinusoidal image focused on a camera as a function of the frequency of the image. It gives information about the spatial response of the camera. This curve is usually obtained by the Fourier transform of the Line Spread Function, i.e. the signal response of the cameras to an extremely thin slot.
The MRTD (Minimum Resolvable Temperature Difference) is a standard performance measurement for Thermal Imagers. This measurement leads to the determination of the DRI ranges (Detection, Recognition, Identification ranges) of the infrared camera under test.
The MRTD measurement is performed using:
- a differential blackbody, as the infrared reference source
- a four-bar target, as the reference object, positioned in front of the emissive surface of the reference source
- a collimator projecting the object in front of the camera under test
The differential blackbody enables to set a positive or negative temperature difference between the target bars and their background (the emissive surface of the blackbody). The MRTD curve is plotted by determining the minimum temperature difference between the target and the background, required to distinguish the 4 bars on the thermal image of the camera, as a function of the spatial frequency of the 4-bar target.
To perform a fast and accurate MRTD test, patterns of 4-bar targets, with optimized spatial frequencies, can be computed depending on the Field of View and the resolution of the camera, and on the focal length of the collimator. Download our calculation sheet to determine the target pattern suiting your needs.
For more information, do not hesitate to contact our specialists.
The TOD (Triangle Observation Discrimination) is a method to draw the thermal contrast curve versus the spatial frequency. Similarly to the MRTD, this measurement leads to the determination of the DRI ranges (Detection, Recognition, Identification ranges) of the infrared camera under test.
As opposed to the MRTD, the TOD method is fully objective. The TOD method is then considered as an alternative bias-free procedure to the MRTD.

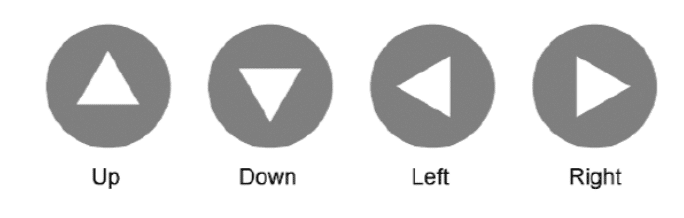

The TOD method is based on the observation of an equilateral triangle on a uniform background. The triangle has four possible orientations: one of the apexes is directed up, down, left or right.
Similarly to MRTD, a thermal contrast DT is applied between the target and the background and different triangle sizes are observed. Contrary to MRTD, there is a CORRECT answer and 3 WRONG answers.
The procedure of TOD consequently requires 2 types of operators:
- An operator who knows the correct answer
- And an observer who has to indicate which of the 4 orientations is perceived, even if he is not sure
The TOD measurement is performed using:
- a differential blackbody, as the infrared reference source
- a set of targets with triangle patterns of different sizes
- a collimator projecting the object in front of the camera under test
For more information, do not hesitate to contact our specialists.

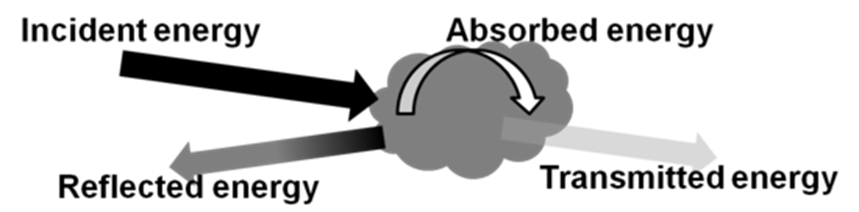

An optical source emits a luminous flux (F) of energy toward a sensor. This flux propagates from the source to the sensor.
Luminous parameter:
Luminance is a quantity representing the brightness of sources independently from its size and its emitting cone. This value is consequently often used to compare tow sources.
What is the unit of the luminous flux?
The USI unit of luminous flux is Lumen, abbreviation lm.
1 lumen = 1/683 Watt at 555 nm
555 nm is the wavelength to which the eye is the most sensitive.
The USI unit of luminous intensity is Candela, abbreviation cd.
1 cd = 1 lm/sr
1sr = 1 steradian is the cone of light spreading out from the source which would illuminate 1 m² at 1 m distance from the source.
The USI unit of luminance or Radiance is Candela per square meter, abbreviation cd/m².
The USI unit of illuminance or irradiance is Lux, abbreviation lx.
1 lux = 1 lm/m²
